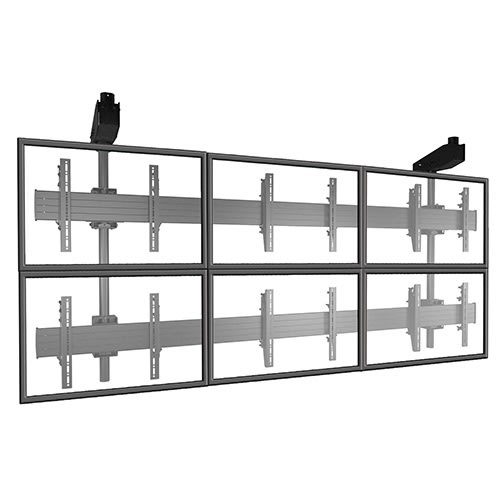

This FUSION large TV ceiling mount make it possible to construct video walls in prominent locations where walls aren't available. Comes in 2 x 2, 3 x 2 and 3 x 3 arrangements. Great for digital signage installations. This 6 monitor video wall accommodates monitors and TV's from 42 to 55 inch and up to 125 lbs. per each.
- With an additional accessory (FCAX extension bracket), you can mount screens up to 65 inches. You will need a total of four FCAX extensions, two per row.
- When ordering, choose the pole or column length as well as the celiling plate option that's right for you.
- Be sure to add the make and model of monitor or TV you will be mounting; at time of order, we will verify that the mount your ordering is compatible with the screen your mounting.
- Adjustments: Micro-Adjustments of 2" at structural intersection points
- Manual Height Adjustment: 1" (25.4 mm) increments at structural intersections
- Mounting Pattern Compatibility (Universal Versions): any width x 100 mm - 400 mm
- Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
- Typical Screen Sizes: 42" - 55"
- Weight Capacity: 125 lbs (56.7 kg)
- Orientation: Landscape
- Certifications: UL Listed
- Color: Black
- Available accessories: C-CMA-Series,C-FCA5XX-Series,C-CPA-Series,C-CPA330,C-FCA502,C-FCA501,C-FCA540
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
PRODUCT FEATURES
- PRECISE SCREEN ALIGNMENT
- Easily align displays with independent knobs for height and plumb adjustments, no tools required.
- CONTROLZONE™ LEVELING
- Micro-height and leveling adjustment at all column intersection points.
- INFINITE SCREEN POSITIONING
- Infinite vertical and lateral adjustments provide tight display rows and columns.
- HEAVY-DUTY CONSTRUCTION
- Solid construction supports displays up to 55" and 125 lbs. (56.7 kg) per screen.
- CONFIGURABLE
- Add configurations side by side to create any video wall arrangements up to 3 screens tall.
- CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
|
|
|
|
|
|
|
